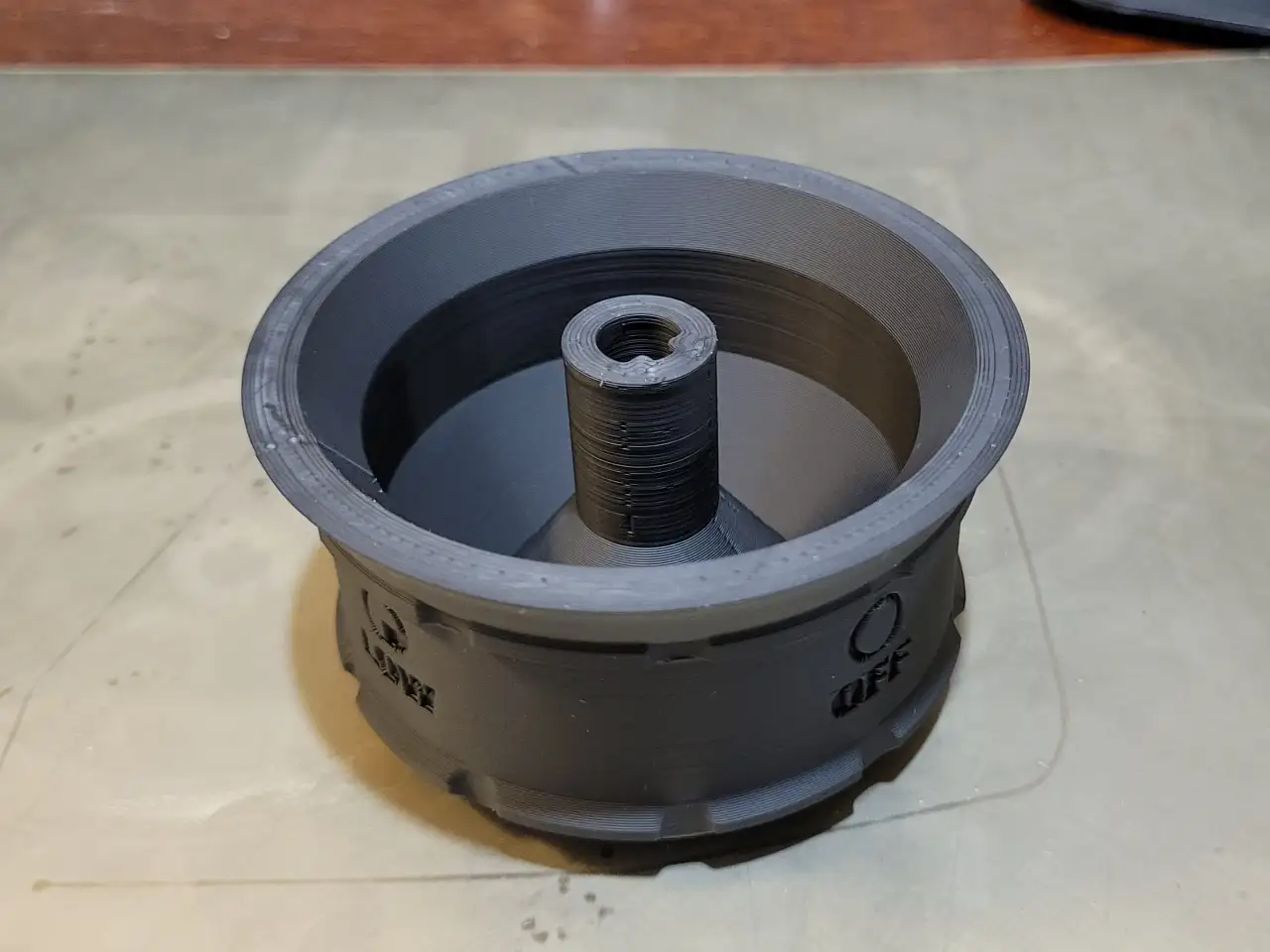

Replacement Grill Knob

A replacement grill knob. Happens to work with Weber propane grills.

Printing Tips

Printing Technology: FDM
Layer Height: 0.2mm
Perimeters: 6
Infill: 30%
Infill Pattern: Gyroid
Recommended Material: ABS, ASA
Supports: None
Support Type: None

Notes:
Model is designed to be printed with no supports.
ABS, ASA, or other higher temperature filament is recommended.
Clearance for knob can be customized parametrically. Default is set to 0.2

Recommendations for reducing waste:
1. Set hole offset to best guess (generally -0.2)
2. Import to slicer and cut the body at z = 5mm, unselecting "Keep Upper Part".
3. Delete outer ring and print.
4. Test on your grill. If too tight, re-customize with a clearance of 0.3 or higher. If too loose, 0.1 or lower.
5. Repeat as necessary

Assembly Instructions

Materials Needed:
None

Instructions:
1. Replace knob with new knob

Customize Model

min: 0 max: -0.5
